The catalogue
Ace supplies hydraulic hoses, ferrules, adaptors, fittings, quick release couplings, air brake connections and drive belts from tried and tested brands. Order online from our store, browse 65 catalogue lines below, or call, email or visit the counter.
Online store
Order online, any time
Our full catalogue lives on our online store. Search by name, product code or brand, add parts by code and order from your desk or the cab.
Product ranges
Hydraulic catalogue
Matched components that make a tried and tested, safe system. Hover a range to preview it.
1, 2 and 4 wire braided high pressure hose, cut and made up to order.SAE 100 R1ATEN 853 2SNSAE 100 R16EN 856 4SH
Swaged mild steel ferrules matched to each hose type for secure crimping.F1WF2WFR9RSkive
Unions, tees, elbows, plugs and swivel connectors in mild steel.UnionsSwivelsElbowsPlugs- Hose fittings in BSP, JIC, Metric, ORFS, SAE and SFC, zinc plated.BSPJICMetricORFS
ISO A and flat faced couplings for fast, tool free connection.ISO AFlat facedBSPDry break
Flexi air coils, TUV push fit, FleetFit, PneuFit and compression fittings.TUV testedDIN 74324FleetFitPneuFit
Hundreds of sizes: wrapped, cogged, wedge and lawn and garden belts.WrappedCoggedWedgeLawn & garden
Also from the counter
Hoses cut, crimped and finished to your length and fittings.Made to patternCrimpedPressure ready
Pressure washer hoses, lances and nozzles, supplied and fitted.HosesLancesNozzles

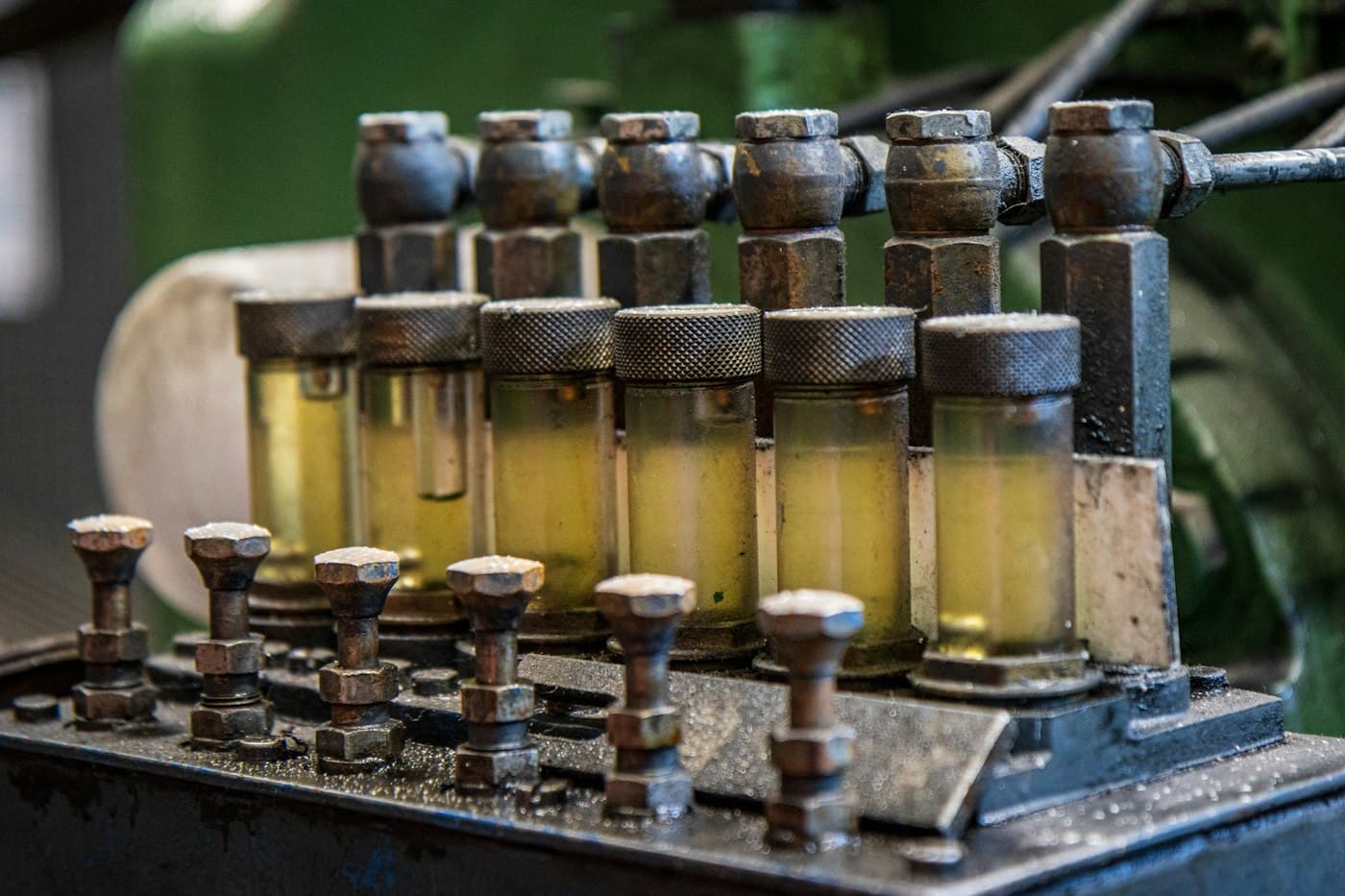

Oils, lubricants and fuel equipment to keep machines running.Hydraulic oilLubricantsFuel equipment
Tools, accessories and hundreds of essential consumables.ToolsAccessoriesConsumables
Catalogue index
Find the part you need
Search every product line in our online catalogue. Can't see it? We hold thousands more products in stock, so just ask.
Showing 65 product lines.
Hydraulic Hoses
View range - 1 Wire SAE 100 R1AT Hydraulic HosesReinforced with one high tensile steel wire braid offering reliability and maximum performance for high pressure hydraulic lines.
- 2 Wire DIN EN 853 2SN Hydraulic HosesReinforced with two high tensile steel wire braids especially for high pressure hydraulic hose connections to equipment and machinery. Exceptional quality, reliability and optimum performance.
- 2 Wire SAE 100 R16 Hydraulic HosesFor higher pressure hydraulics, reinforced with two high tensile steel wire braid for exceptional quality to guarantee complete reliability and maximum performance.
- 4 Wire 4SH R1AT Hydraulic HosesReinforced with 4 steel wire braid for high pressure hydraulic hoses connected to machinery and equipment. Exceptional quality, reliability and optimum performance.
- 4 Wire 4SP Hydraulic HosesHigh pressure hydraulic hose reinforced with four high tensile steel braid offering quality and maximum performance.
Hydraulic Ferrules
View range - Swaged Ferrule F2W (non skive)Mild steel corrosion and rust resistant ferrule, serrated with collar for a smooth hose connection. Ferrule thickness ensures optimum crimping with no distortion reducing the risk of accidental disconnection.
- Swaged Ferrule FR9R (skive)Mild steel corrosion and rust resistant ferrule, serrated coupling with collar for smooth hose connection. Ferrule thickness ensures optimum crimping with no distortion, reducing the risk of disconnection.
- Swaged Ferrule F1W (non skive)Mild steel corrosion and rust resistant ferrule, serrated with collar for smooth hose connection. Ferrule thickness ensures optimum crimping with no distortion, reducing the risk of disconnection.
Hydraulic Adaptors
View range - Union Male to Male Hydraulic FittingsAt Ace we offer a wide range of Union fittings. Ideal for hydraulic systems in engineering, mechanical, chemical and constructional applications, male to male. Mild steel.
- Reducing Nipple Hydraulic FittingsA wide choice of sizes compatible with all other Ace hydraulic fittings. Mild steel hexagon reducing nipple, male to male connections. Fine threads ensure a leak-free system.
- Straight Bulkhead Union Hydraulic FittingsOur bulkhead unions are made from quality mild steel, corrosion and rust-resistant. Delivered in a finger tight and assembled condition for high pressure hydraulic applications. Tried and tested for reliability and optimum performance.
- Swivel Connector Hydraulic FittingsThese swivel connectors are available in a wide range of configurations. The plating in the connectors significantly reduces the fitting assembly torque requirements as well as the galling risks. Fully tested to exacting standards in order to ensure quality and reliability in high pressure hydraulic applications. Mild steel.
- Swivel 90B Elbow Hydraulic FittingsRange of popular sizes, compact design for quick and easy connection to hydraulic hose and pipeline assemblies. Our 90B swivel adaptors add versatility to male NPT hose and adaptor connections. Fully tested to exacting standards in order to ensure quality and reliability in high pressure hydraulic applications. Mild steel.
- Swivel 45B Elbow Hydraulic FittingsRange of popular sizes, compact design for quick and easy connection to hydraulic hose and pipeline assemblies. Our 45B swivel adaptors add versatility to male NPT hose and adaptor connections. Fully tested to exacting standards in order to ensure quality and reliability in high pressure hydraulic applications. Mild steel.
- Swivel Connector Hydraulic Fittings (2450)Wide range of sizes to suit most popular hydraulic systems. Their compact in-line design eliminates hose twist and torque. Sealed bearing design. Fully tested to exacting standards in order to ensure quality and reliability in high pressure hydraulic applications. Mild steel.
- Male Plug Hydraulic FittingsWide range of sizes to suit most popular hydraulic systems. BSPT solid plug with hexagonal head. Complies to BS EN 10277-DIN 3852. Fully tested to exacting standards in order to ensure quality and reliability in high pressure hydraulic applications. Mild steel.
- Union Female to Female Hydraulic FittingsWide choice of sizes and threads. Hydraulic high pressure NPT straight threaded coupling, female to female. Mild steel. Fully tested to ensure quality and reliability on all hydraulic hose applications.
- Female Plug Swivel Hydraulic FittingsHydraulic high pressure BSP female plug swivel. Hexagonal head, wide range of thread sizes. BSPP female to BSPP female thread. Mild steel. Fully tested to ensure quality and reliability on all hydraulic hose applications.
- BSP Male Parallel 60B ConeA wide range of BSP Male Parallel Cones in quality mild steel, corrosion and rust-resistant, compatible with our range of ferrules and hydraulic hoses.
Hydraulic Fittings
View range - BSP Hose FittingsThese BSP fittings are part of our range of fluid power solutions and are compatible with Ace hydraulic hoses. One piece stem assures minimum flow restrictions and allows for concentric crimping and a leak-free seal. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- JIC Male & Female Cone Hose FittingsThese JIC cone fittings are part of our range of fluid power solutions and are compatible with Ace hydraulic hoses. Designed to ensure minimum flow restrictions and allows for concentric crimping and a leak-free seal. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- JIC Female Cone Back Hexagon Hose FittingsThese JIC fittings are part of our range of fluid power solutions and are compatible with Ace hydraulic hoses. Designed to ensure minimum flow restrictions and allows for concentric crimping and a leak-free seal. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- JIC 45° & 90° Swept Elbow Hose FittingsThese swept elbow fittings with 74° cone have a one piece stem for minimum flow restrictions and allows for concentric crimping and a leak-free seal. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV). Part of our fluid power fittings, compatible with our range of Ace hydraulic hoses.
- METRIC Seat Light Hose FittingsWide range of METRIC 24° seat light fittings manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV). The METRIC range of swept elbows have a one piece stem for minimum flow restrictions and a leak-free seal. All these fittings are compatible with the Ace range of hydraulic hoses.
- METRIC Male & Female Seat Heavy Hose FittingsThese 24° seat heavy fittings are designed to deliver a leak-free connection on higher pressure hydraulic systems. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- METRIC Swept Elbow & Banjo Seat Heavy Hose FittingsThese 24° seat heavy fittings are designed to deliver a leak-free connection on higher pressure hydraulic systems. One piece stem for minimum flow restrictions. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- ORFS Male & Female Hose FittingsThese O-ring face seal fittings offer the best leak protection connections. The male fitting has a straight thread and O-ring in the face. The female has a straight thread and a machined flat face. The seal takes place by compressing the O-ring onto the flat face of the female. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO: 2000 (DNV).
- ORFS 45° & 90° Swept Elbow Hose FittingsThese O-ring face seal swept elbows have a one-piece stem for minimum flow restriction. Once fitted, the compressed O-ring offers one of the best leak-free connections for your hydraulic systems. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- SAE Welded Flange Fittings 3000 PSIDesigned to handle fluid working pressures up to 3000 psi. Once applied to the hose these SAE compressed O-ring fittings provide a leak proof, full flow connection over a wide variety of hydraulic systems. Welded for extra strength and durability. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- SAE High Pressure Flange Fittings 6000 PSIDesigned to handle higher pressure fluid working pressures up to 6000 psi. Once connected to the hose these SAE compressed O-ring fittings provide leak proof, full flow performance over a wide variety of high pressure hydraulic systems. Welded for extra strength and durability. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
- SFC CAT Hydraulic Hose Flange FittingsThese one piece fittings with Inter-Lock are designed to handle fluid working pressures especially for Caterpillar high pressure hydraulic systems. Manufactured in mild steel with a new zinc plated treatment for improved corrosion resistance to BS EN ISO 9001: 2000 (DNV).
Quick Release Couplings
View range - Quick Release BSP ISO A Female Carrier Hydraulic FittingsISO A rated couplings for high pressure hydraulic applications. Quick connect and/or disconnect hydraulic lines quickly and easily without the use of tools. Dry-break and non-spill. Mild steel.
- Quick Release BSP ISO A Male Probe Hydraulic FittingsISO A rated male probes for high pressure hydraulic applications. Quick connect and/or disconnect to hydraulic lines quickly and easily without the use of tools. Dry-break and non-spill. Mild steel.
- Quick Release BSP Flat Faced Female CarriersDesigned for high pressure hydraulic applications. Easily connected and/or disconnected to hydraulic lines quickly and easily without the use of tools. Dry-break and non-spill. Mild steel.
- Quick Release BSP Flat Faced Male ProbesDesigned for high pressure hydraulic applications. Easily connected/disconnected to hydraulic lines quickly and easily without the use of tools. Dry-break and non-spill. Mild steel.
Air Brake Connections
View range - Flexi Air Coils: RedThese high pressure coiled hydraulic lines eliminate tangling and deliver increased flow performance. Flexi Air Coils are abrasion and weather-resistant and are resistant to oil, grease, petrol, fuel oils, salts and chemicals.
- Flexi Air Coils: YellowThese high pressure coiled hydraulic lines eliminate tangling and deliver increased flow performance. Flexi Air Coils are abrasion and weather resistant. High resilience against oil, grease, petrol, diesel, fuel oils, salts and most chemicals.
- TUV Male Stud CouplingsExtensive range of 42 sizes. Solid brass push-in fitting with reinforced rings and components ready to be coupled to tubing without the need for tools.
- TUV Swivel FittingsOrder today from our range of popular fittings designed for the perfect connection to Air Brake systems. Solid brass with reinforced rings and components, manufactured to ISO 6149-80 and DIN 3482 standards. TUV tested for pull-force, sealing, corrosion and vibration resistance.
- TUV TIPO Swivel StudsReady to use push-in swivel studs that do not require tools for coupling to tubing. Solid brass body with reinforced rings and components, manufactured to ISO 6149-80 and DIN 3482 standards. TUV tested for pull-force, sealing, corrosion and vibration resistance. Operating temperature range -40°C to +100°C. Series 660.
- TUV Fixed Stud ElbowsChoice of 34 metric size stud elbows for the perfect connection to Air Brake systems. Brass push-in fitting with reinforced rings and components ready to be coupled to tubing without the need for tools. The seal of the stud elbow is manufactured to ISO 6149-80 and DIN 3482 standards. TUV tested for pull-force, sealing, corrosion and vibration resistance. 810 series.
- TUV Fixed AdaptorsOrder today from this specially selected popular range of Air Brake fixed adaptors. Solid brass with reinforced rings and components manufactured to ISO 6149-80 and DIN 3482 standards. TUV tested for pull-force, sealing, corrosion and vibration resistance.
- FleetFit Push-In Equal Connectors, Elbows & TeesA wide range of TUV approved Equal Connectors, Elbows and Tees featuring simple air hose tube connection and disconnection with no tools required, ideal for tube insertion in restricted areas. Maximum working pressure up to 10 bar/150 psi, operating temperature -40°C to +100°C. Corrosion resistant brass body, low nitrile O ring, precoat 5 thread sealant.
- FleetFit Push-In Metric Male Stud CouplingsAn impressive range of metric male stud couplings featuring simple air hose tube connection and disconnection with no tools required ideal for tube insertion in restricted areas. Maximum working pressure up to 10 bar/150psi, operating temperature -40°C to +100°C. Corrosion resistant brass body, low nitrile O ring, precoat 5 thread sealant.
- FleetFit Push-In Imperial Male Stud CouplingsAn impressive range of imperial male stud couplings featuring simple air hose tube connection and disconnection with no tools required ideal for tube insertion in restricted areas. Maximum working pressure up to 10 bar/150psi, operating temperature -40°C to +100°C. Corrosion resistant brass body, low nitrile O ring, precoat 5 thread sealant.
- FleetFit Push-In Stud Elbow FittingsA wide range of TUV approved Stud Elbows featuring simple air hose tube connection and disconnection with no tools required, ideal for tube insertion in restricted areas. Maximum working pressure up to 10 bar/150 psi, operating temperature -40°C to +100°C. Corrosion resistant brass body, low nitrile O ring, precoat 5 thread sealant.
- FleetFit Push-In FittingsA wide and varied range of push-in fittings featuring simple air hose tube connection and disconnection with no tools required ideal for tube insertion in restricted areas. Maximum working pressure up to 10 bar/150psi, operating temperature -40°C to +100°C. Corrosion resistant brass body, low nitrile O ring, precoat 5 thread sealant.
- PneuFit Push-In Equal Connectors, Elbows & TeesA wide range of Equal Connectors, Equal Elbows and Equal Tees designed as very compact fittings offering easy and positive tube insertion for fast assembly of pneumatic circuits. Operating pressure up to 18 bar, operating temperature -20°C to +80°C. Nickel plated brass, silicone free nitrile rubber O ring, non-PTFE thread sealant. Not suitable for vehicle air braking systems.
- PneuFit Push-In Straight AdaptorsOrder today from our comprehensive range of Straight Adaptors designed as very compact fittings offering easy and positive tube insertion for fast assembly of pneumatic circuits. Operating pressure up to 18 bar, operating temperature -20°C to +80°C. Nickel plated brass, silicone free nitrile rubber O ring, non-PTFE thread sealant. Not suitable for vehicle air braking systems.
- PneuFit Push-In Fixed & Swivel ElbowsVery compact elbow fittings with easy tube insertion for rapid assembly of pneumatic systems with positive tube anchorage. Operating pressure 18 bar, operating temperature -20°C to +80°C. Nickel plated brass body, silicone free nitrile rubber O ring, non-PTFE thread sealant. PneuFit fittings are not to be used in vehicle air braking systems.
- PneuFit Push-In Swivel ElbowsVery compact elbow fittings with easy tube insertion for rapid assembly of pneumatic systems with positive tube anchorage. Operating pressure 18 bar, operating temperature -20°C to +80°C. Nickel plated brass body, silicone free nitrile rubber O ring, non-PTFE thread sealant. PneuFit fittings are not to be used in vehicle air braking systems.
- PneuFit Push-In FittingsA wide choice of PneuFit compact fittings with easy tube insertion for rapid assembly of pneumatic systems with positive tube anchorage. Operating pressure 18 bar, operating temperature -20°C to +80°C. Nickel plated brass body, silicone free nitrile rubber O ring, non-PTFE thread sealant. PneuFit fittings are not to be used in vehicle air braking systems.
- Brass Compression OlivesOur olive range is comprehensive and offers a wide choice of metric and imperial sizes to suit most popular assemblies. Easy to use with most fittings, providing excellent sealing qualities, and are suitable for use with various types of Air Brake tubing.
- Brass Compression O Rings, Thrust Rings, Tube InsertsOur range is comprehensive and offers a wide choice of metric sizes to suit most popular air hose assemblies. Easy to use with most fittings, providing excellent sealing qualities, and are suitable for use with various types of compression fittings. Thrust Rings and O Rings are used in conjunction with each other, resulting in a sealed connection.
- Brass Compression Straight & Unequal ConnectorsWe have an impressive range of connectors in a wide choice of metric and imperial sizes to suit most popular compression assemblies. Easy to use with most fittings, providing excellent sealing qualities, and are suitable for use with various types of Air Brake tubing. Brass body with reinforced components, tested for pull force, sealing, corrosion and vibration resistance.
- Brass Compression Equal Elbows & TeesWe have large range of equal elbows and tees in a choice of metric and imperial sizes to suit most popular compression assemblies. Easy to use with most fittings, providing excellent sealing qualities, and are suitable for use with various types of Air Brake tubing. Brass body with reinforced components, tested for pull force, sealing, corrosion and vibration resistance.
- Brass Compression Male/Female Adaptors, Female Sockets, Blanking PlugsWide choice of brass compression accessories to suit most Air Brake fittings. Easy to use with most fittings, providing excellent sealing qualities, and are suitable for use with various types of Air Brake tubing. Brass body, tested for pull force, sealing, corrosion and vibration resistance.
- Brass Compression Male Stud CouplingsWide choice of male stud couplings to suit Air Brake systems and assemblies. Easy to connect, providing excellent sealing qualities. Brass body with reinforced components, tested for pull force, sealing, corrosion and vibration resistance.
- Brass Compression Stud ElbowsOur range of stud elbows provide a reliable connection within most Air Brake systems. The brass body with reinforced components ensures excellent sealing qualities. Tested for pull force, corrosion and vibration resistance.
- Steel Compression Bulkhead FittingsWide choice of steel compression fittings to suit most Air Brake systems, assemblies and tubing. Steel body with excellent sealing qualities, tested for pull force, corrosion and vibration resistance.
- Steel Compression Male/Male AdaptorsChoice of 34 different size male/male adaptors ideal for use with Air Brake systems. Steel body, tested for excellent sealing, pull force, corrosion and vibration resistance.
- Steel Compression Male/Female & Female AdaptorsWide choice of male/female and female adaptors ideal for use with Air Brake systems. Steel body, tested for excellent sealing, pull force, corrosion and vibration resistance.
- Steel Compression Elbows, Tees, Studs & Blanking PlugsSteel compression elbows, tees, studs and blanking plugs ideal for use with Air Brake Systems. Steel body, tested for excellent sealing, pull force, corrosion and vibration resistance.
- Steel Compression Equal Connectors, Elbows & TeesIdeal for use with Air Brake Systems, these equal compression fittings have a steel body, tested for excellent sealing, pull force, corrosion and vibration resistance.
- Steel Compression Test Points & Tilt TapsIdeal for use with Air Brake Systems, these test points and tilt taps are popular accessories for most systems. Steel body, tested for efficient sealing, pull force, corrosion and vibration resistance.
